Assemble What You Want It For

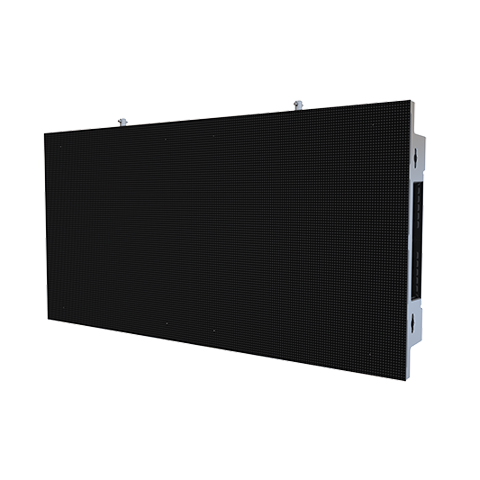

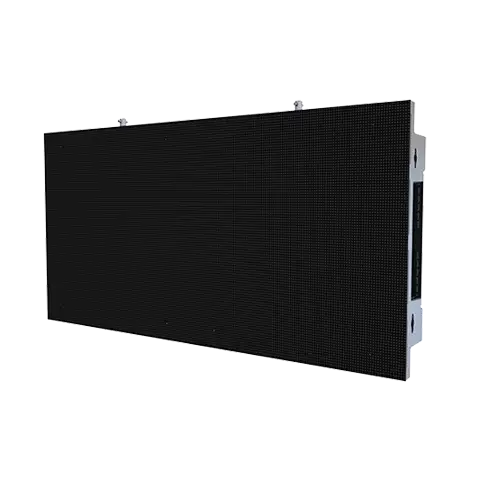

Professional indoor fixed LED sign.

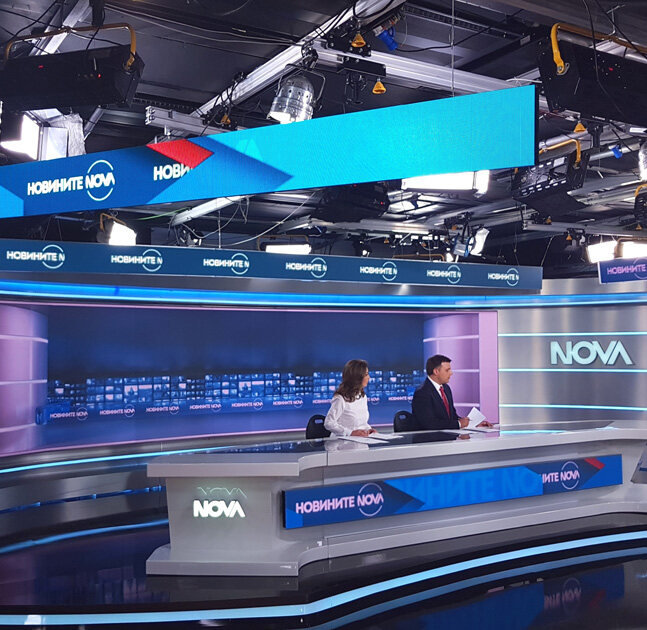

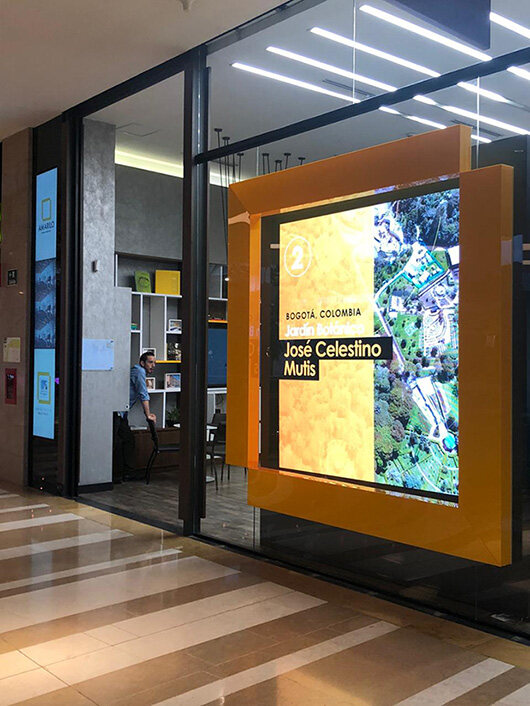

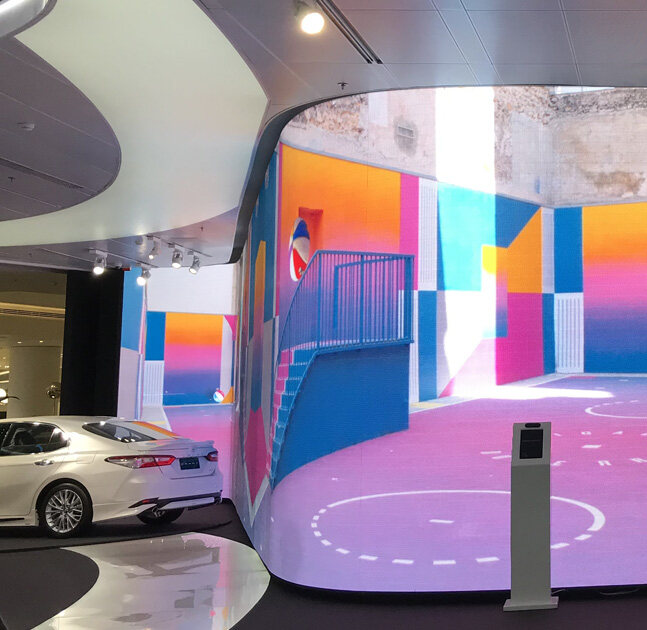

BNX series: High definition images, dynamic animation effects, support multiple broadcast format, widely application for retail shops, chain stores, TV studios, Cinemas, Airports, Museums.
High-end magnificent in appearance, concise and beautiful.
1.5丨 1.95丨 2.5丨 2.6丨 2.9丨 3.1丨 3.9
409600丨 262144丨 160000丨 147456丨 112896丨 102400丨 65536
600丨 600丨 900丨 900丨 900丨 900丨 900

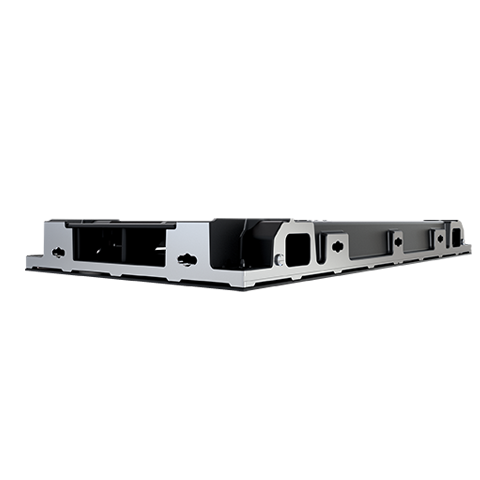

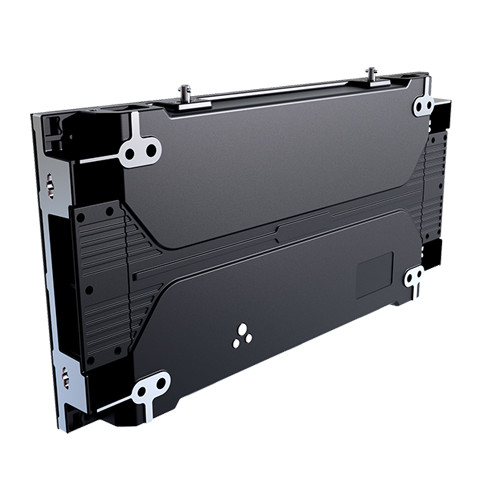

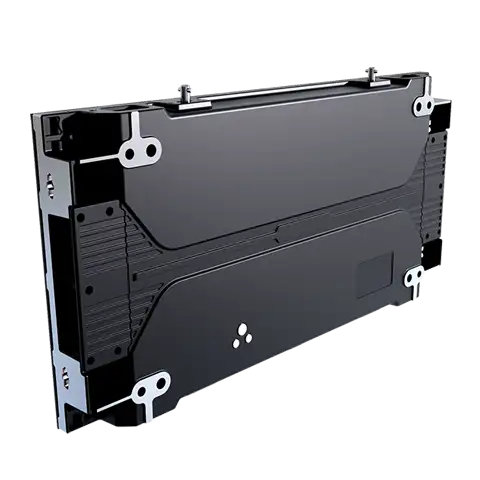

Fancy cabinet design, and both power and data cables are connected internally to ensure no extra uncovering cables outward.
500x250x48MM
750x250x48MM
1000x250x48MM
500x500 x48MM
500x1000 x48MM

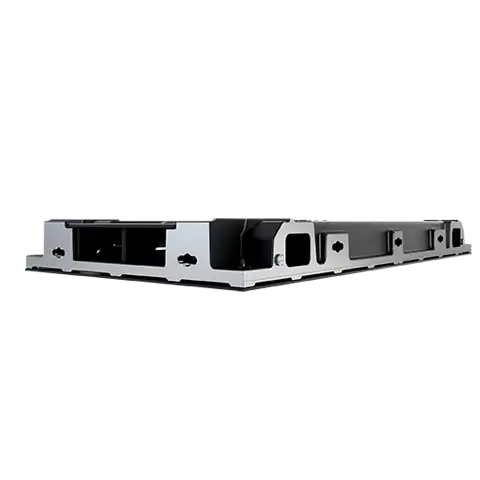

Auto upside and downside locks make operation easier and more convenient, realizing quick installation.

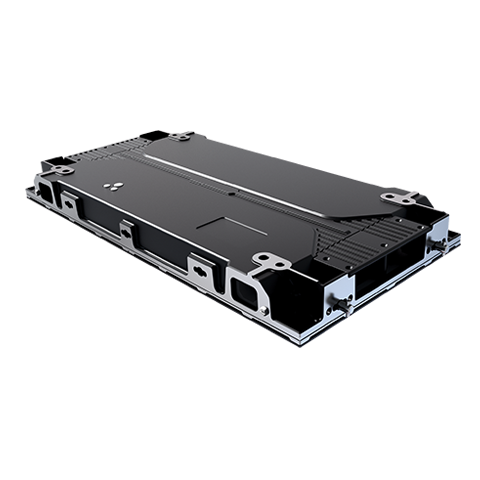

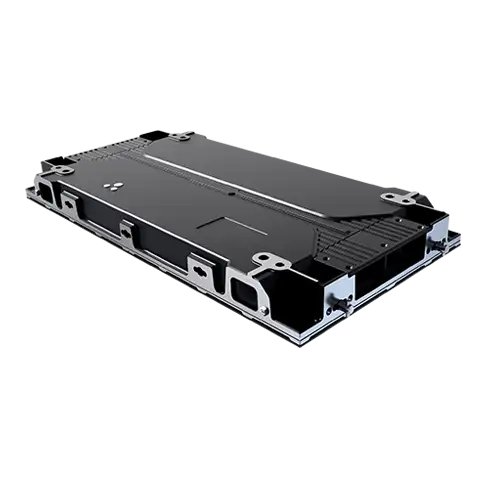

Modules without back shell design helps to dissipate heat more efficiently.
Modules are designed without back shell;
HUB cards and PSU can be taken down and maintained quickly;
AS long as the two piece corresponding modules are taken down.

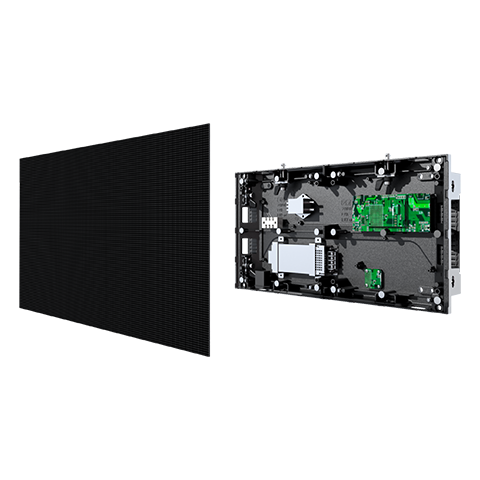

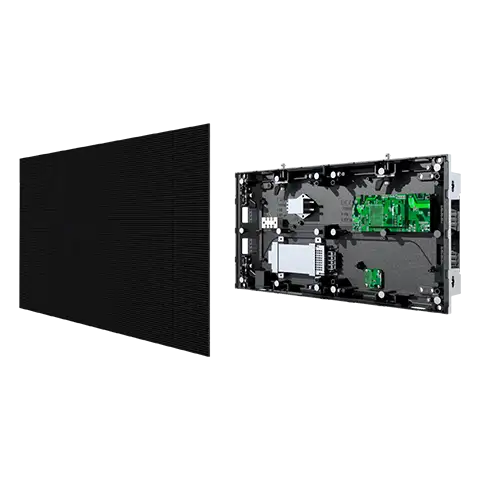

Module: front magnetic maintenance + front vacuum maintenance
Front Maintenance: PSU + HUB card + Receiving card

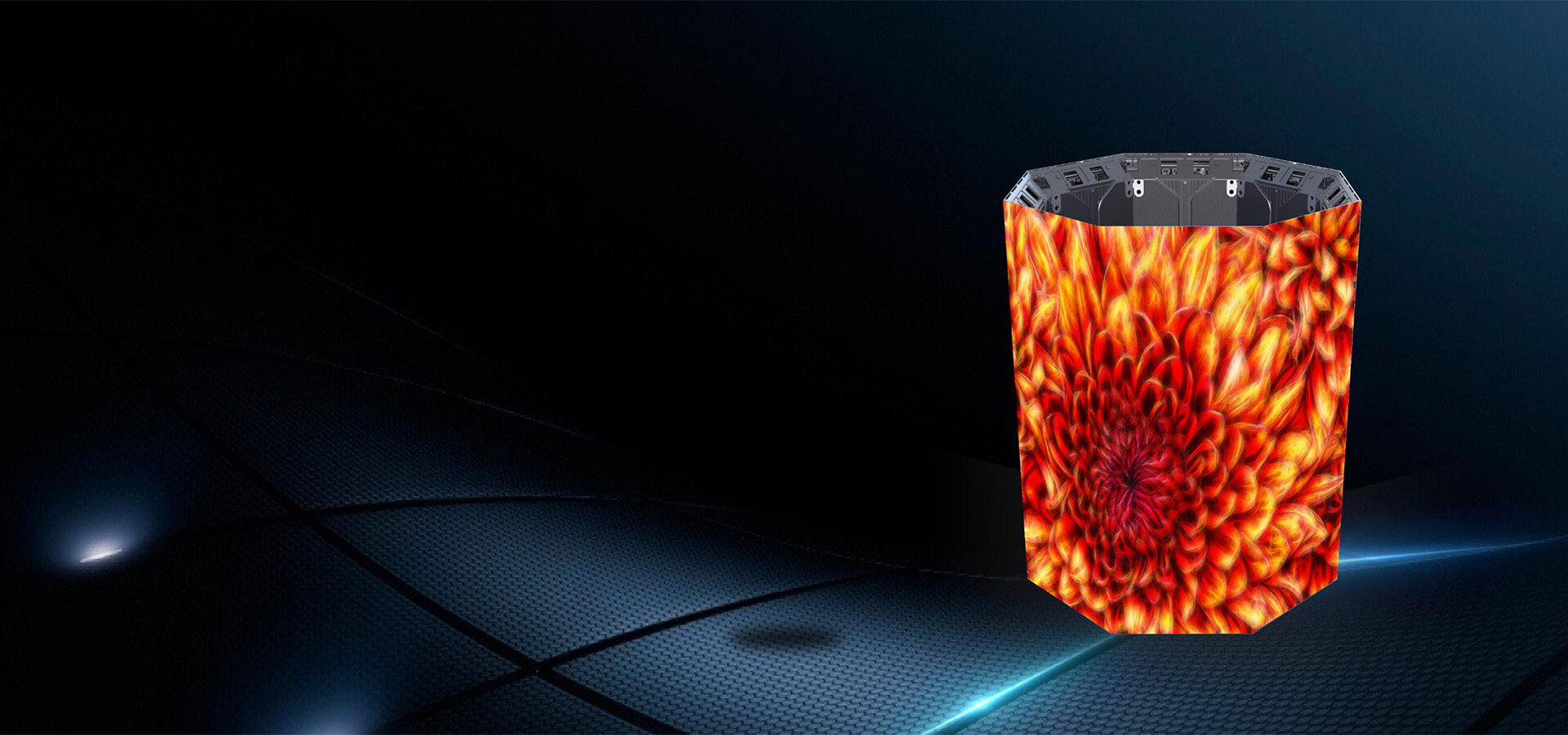

Modules can be rotated and spliced;
The width can be matched at will;
Can spell any size screen.
Cabinets can be combined malposed.
Cabinets can be mixed combined.
Cabinets can be combined freely to cut-corner and corner （-90º~0º） screen horizontally.
High-end magnificent in appearance, concise and beautiful.
Multi-assembly
Design for indoor/fix
| BN1.5X SPECIFICATIONS | ||
| Version：V20200810 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1010 |
| Pixel Pitch （mm） | 1.5 | |
| Pixel matrix per panel | 320/480x160 | |
| Pixel density（pixels/sq.m.） | 409600 | |
| Cabinet Dimensions (WxHxD)/（mm） | 500/750X250x48 | |
| Module Dimensions (WxH)/（mm） | 250x250 | |
| Panel material | Die Casting Aluminum | |
