High Flexibility, Unlimited Creativity

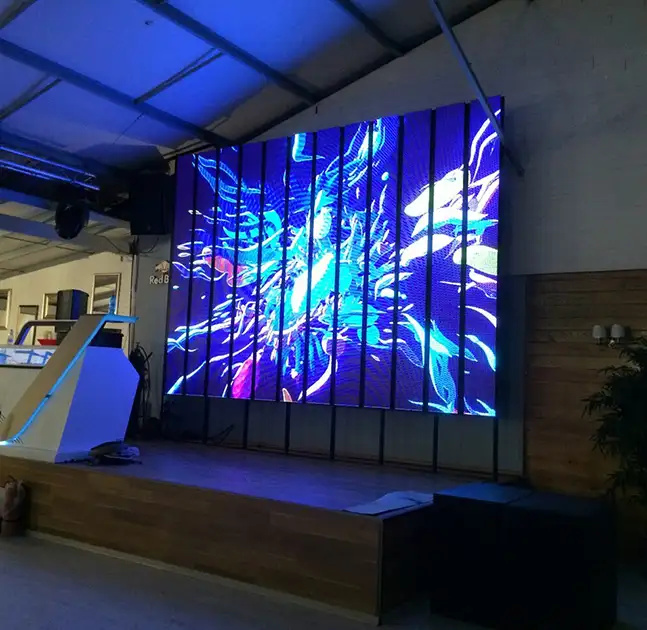

Application: shopping malls, museums, landscapes and bulletin boards etc.
High-end magnificent in appearance, concise and beautiful.
2.9丨 3.9丨 4.8丨 5.9
112896丨 65536丨 43264丨 28224
3000丨 5500丨 5500丨 5500

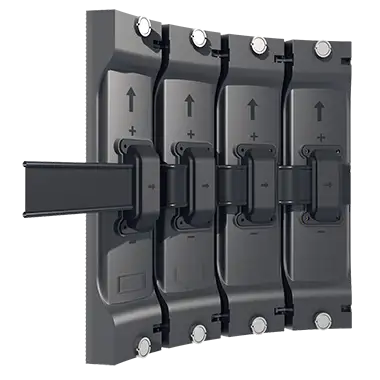

The left and right of modules are designed with positioning posts and positioning holes, which makes installation faster and easier.
Single module can form 45 ° inner arc and outer arc

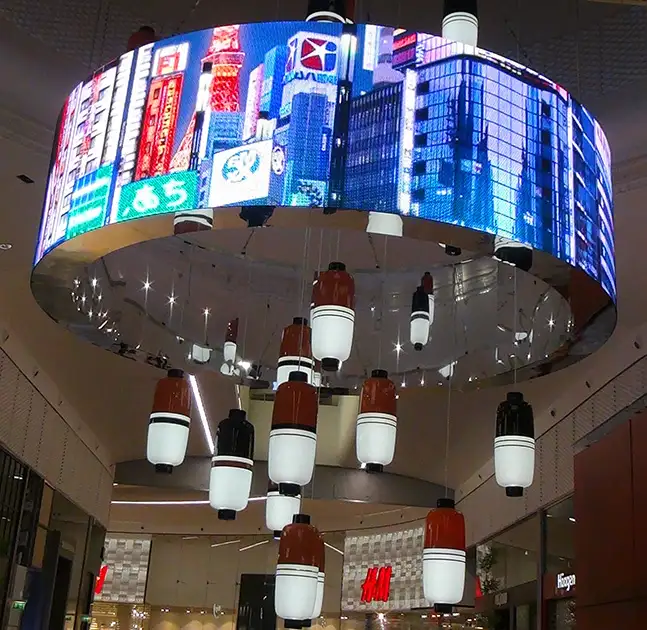

Eight modules can form an inner / outer circle with a minimum inner / outer radius of 318.5mm
- Independent control box, more secure and stable;
-A single control box weight is only 2.27Kg,
- each control box can load 6 modules;
- Protection level is IP65
Designed with bow-shaped maintenance tools for front maintenance and easier maintenance.
The module has only one input and no output interface, and one
module abnormality will not affect the entire screen.
- Module thickness:32mm (including magnet)
- Single module weight is only 1.25Kg (Including cable)
The minimum pixel pitch is 2.9, entering the era of outdoor high-density flexible modules with better display effect.
The module's IP rating is IP66
Excellent waterproof and dust-proof performance
Ensuring normal operation in most cases.
The product can be widely applied in different applications.
| W2.9X SPECIFICATIONS | ||
| Version：V20200902 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1515 |
| Pixel Pitch （mm） | 2.9 | |
| Pixel matrix per module | 84x84 | |
| Pixel density（pixels/sq.m.） | 112896 | |
| Module Dimensions (WxH)/（mm） | 250x250x32 | |
| Module weight (kg/module) | 1.24 | |
| Control box material | Aluminum | |
| Control box Dimensions (LxWxH)/(mm) | 340x150x63 | |
| Control box weight (kg/control box) | 2.27 | |
| Load capacity/control box | 6 | |
