New Role for HD Outdoor
2.6丨 2.9丨 3.9丨 4.8丨 5.9
147456丨 112896丨 65536丨 43264丨 28224
5000丨 5000丨 5500丨 5500丨 6000
P2.6/2.9/3.9/4.8/5.9;
14-bit grayscale;
3840Hz refresh rate

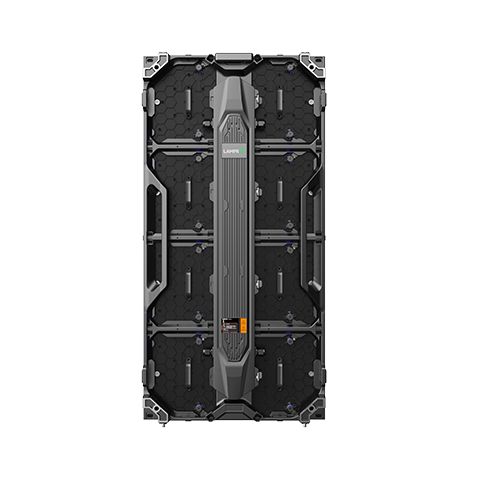

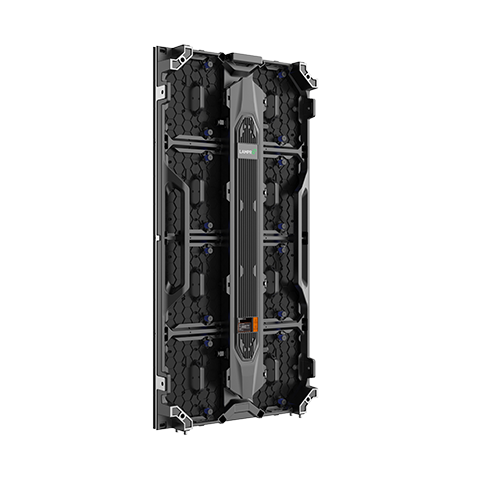

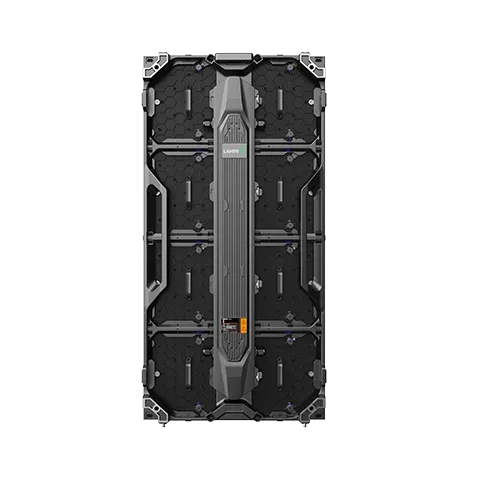

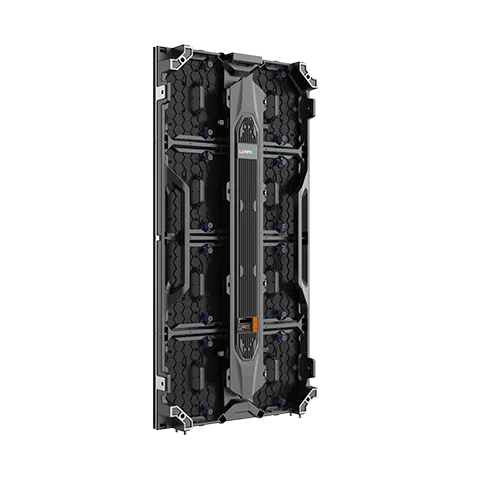

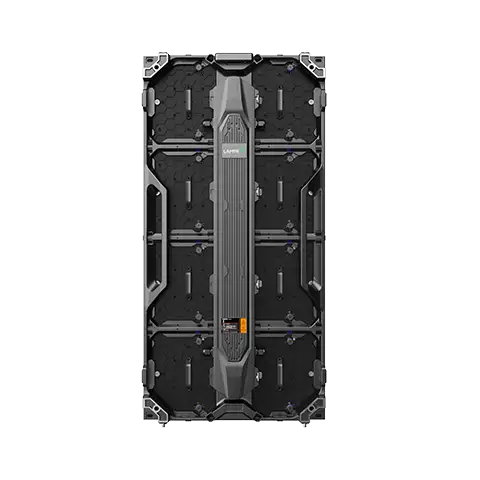

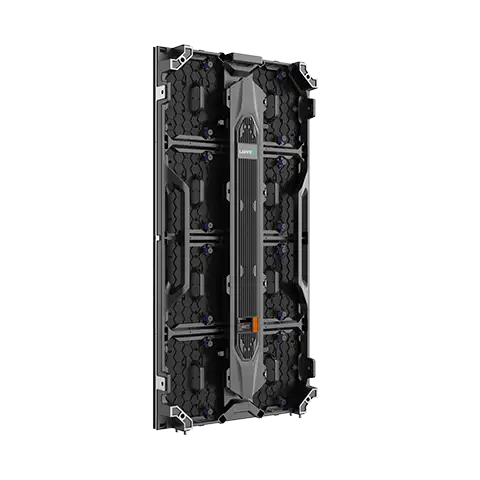

With ultra-thin and light design, LSK is easy to install and integrate with the surrounding environment, and reduce labor and transportation costs
LSK has 500*750, 500*1000mm size available for selection
Viewing angle H: 160° V: 160°, bigger angle to make sure better viewing experience.
Water temperature: 80℃±5℃
Water pressure: 80~100 bar
Water flow rate: 14~16L/min
Water spray distance:10~15cm
Water spraying angle: 0°, 30°, 60°, 90°
Water spraying time: 30 seconds per angle

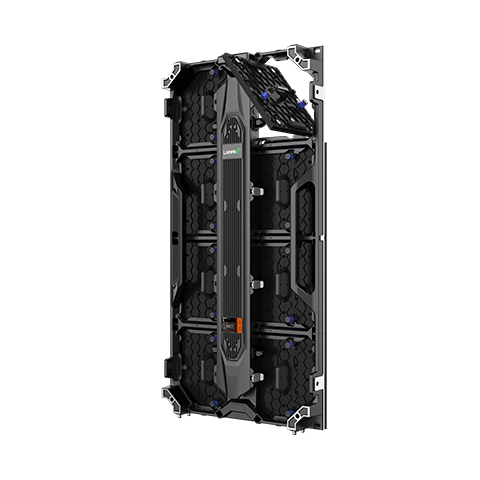

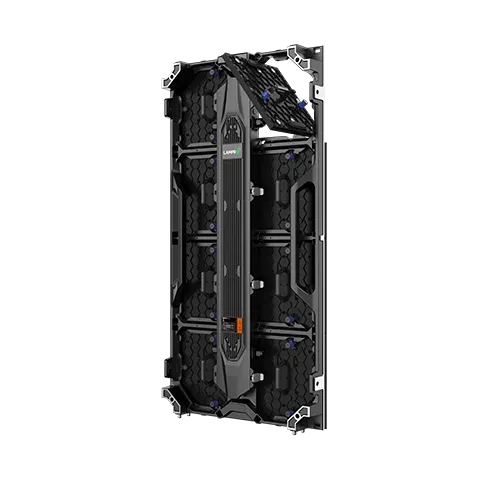

Hollow structure cabinet with large air convection area for quick heat dissipation.
The power supply is placed close to the back cover of the control box to speed up internal heat dissipation.
Ultra-high Flatness;
Positioning Pin Design: Avoid damage to the lamp beads due to bumping against the ground
Storage data and readback
Status detection
Voltage detection
Temperature detection
Cable detection
Spot detection
The industry’s 1st anti-drop structure design，worry-free with double protection design.
Patented Module Lock & Magnetic Suction.
One-key reset, quick and easy.
*For LSK2.6/2.9/3.9

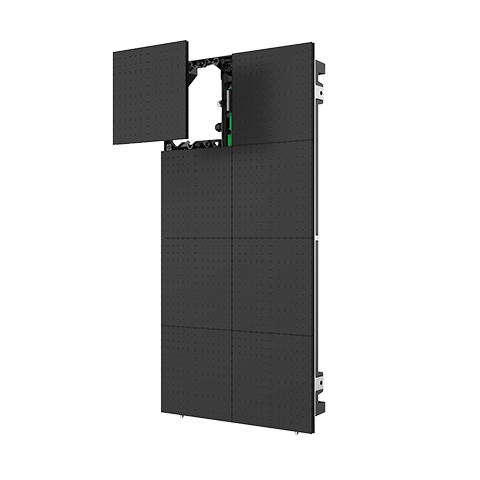

250*250mm modules----P2.6/2.9/3.9

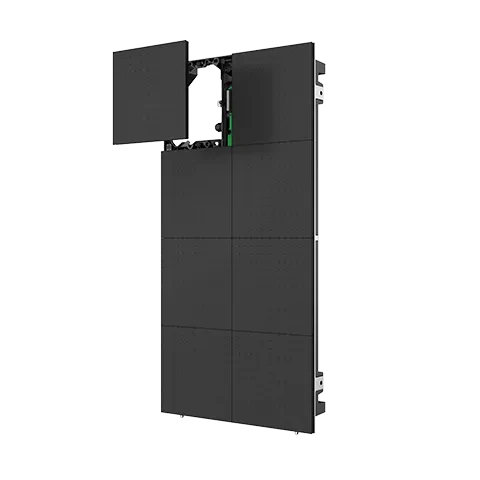

Front maintenance.
Step 1: Unlock the lock next to the cover of the control box to open the cover.
Step 2: Remove the HUB (the power supply and receiving card are fixed to the HUB), and disconnect the connector for power supply. maintenance.
Step 3: Unlock the screws, then the HUB and receiving card can be maintained.

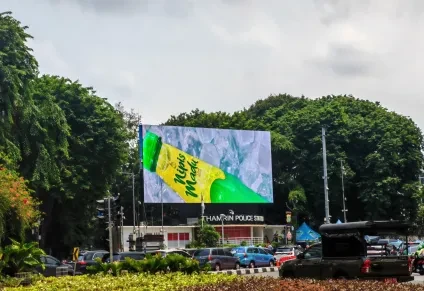

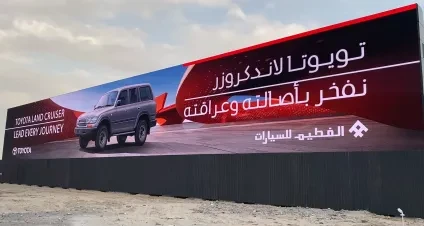

Widely used in a variety of applications.
Ultra-clear, ultra-high-definition, freely customized!
